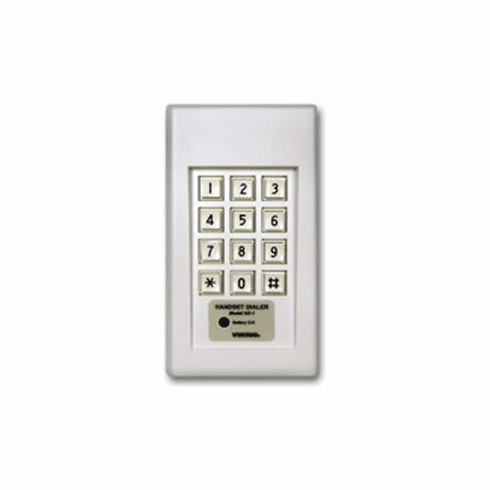

Viking Electronics VK-HD-1 Handset Dialer - White
- Viking handset dialer
- Add touch tone capability to PABX consoles
- Universal keypad touch tone generator capable of providing DTMF signaling
- Permits access via DTMF signaling to beepers, voice mail and banking services from phone system consoles or other equipment which cannot provide touch tones
- Easily installed in series with modular handsets and headsets or interfaces directly to Tip and Ring
- Add DTMF signaling to console phones for: beeper paging, voice mail systems, automated attendants, banking services, access control (interfaced with an RC-3 or RC-2A for door/gate control), program Viking hot-line dialers and emergency phones
- Easily connects in series with handset and headsetsor interfaces directly to Tip and Ring with the furnished adapter kit
- Provides DTMF signaling across a dry pair of wires for in-house applications
- Compatible with console phone auxiliary hand-set jacks
- Powered by 9 V battery (provided) or optional PS-1A 13.8V AC adapter
- "BatteryO.K." LED indicator
- Adjustable touch tone volume control
- Switch selectable transmit (per handset wiring protocol)
- Optional talk battery adapter (PS-1A) for pre-programming Viking products such as hot-line dialers
- Made in the USA
- 1 Year manufacturer's warranty
- Battery life: 1 year average (under normal use)
- White
VKHD1
